Biolan urinal
1,199 SEK
- Secure payment by card
- E-mail us, we reply swiftly!
- Do you need help call +46 8 48 00 15 20
- Only 99 SEK in shipping fee within Sweden per order below 3 000 SEK. Additional freight cost may apply if expressly stated at an article
Description
Article no.: 77577400

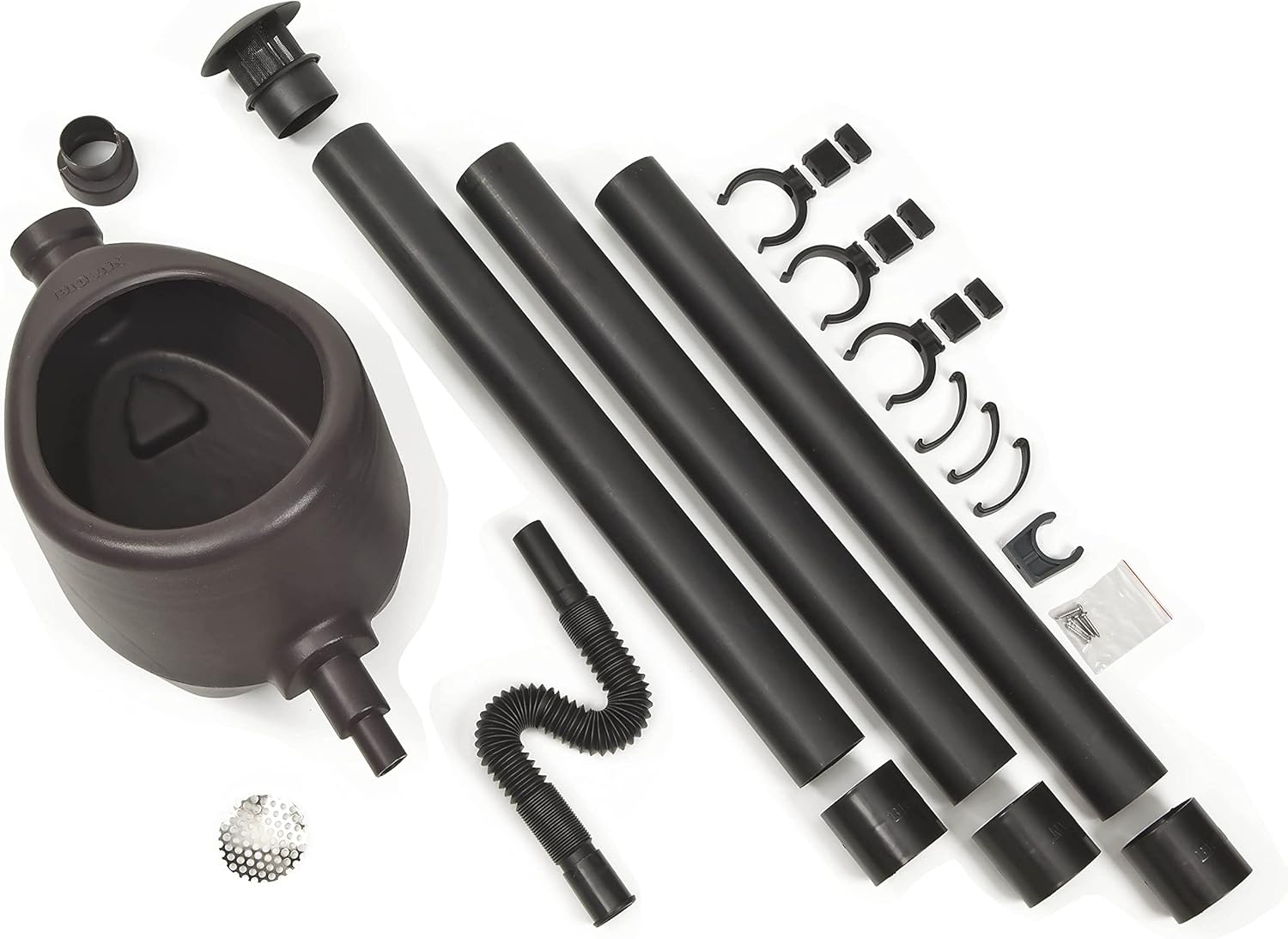

Included in the package:
- Urinal
- Ventilation pipe
- Fluid hose
You can connect the urinal to a tank of the desired size for collecting liquid.

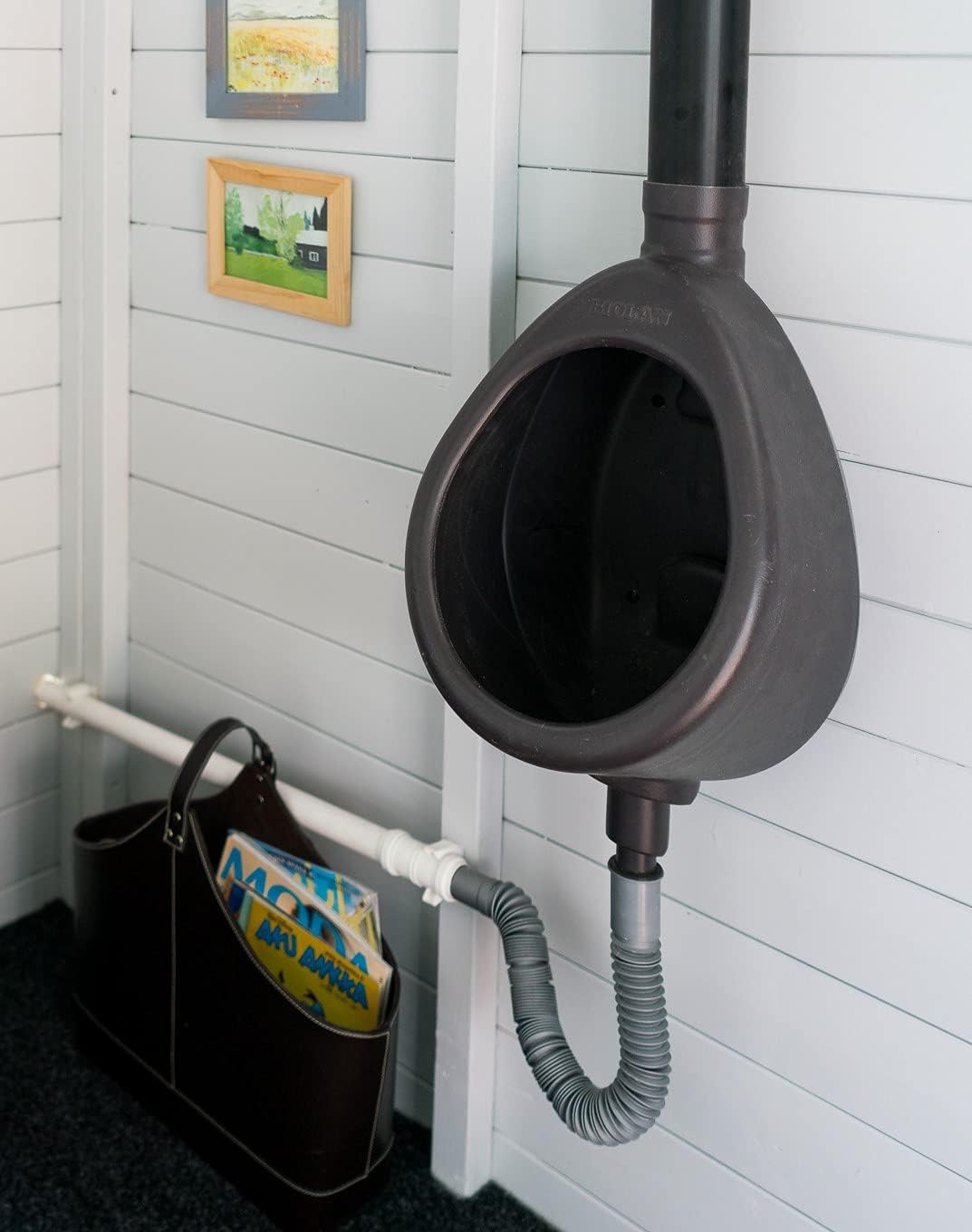

You can mount the Biolan Urinal on the inner or outer wall of the toilet. Fix the back plate to the wall at the desired height using the screws provided. Connect the liquid hose to the outlet. Form a water trap by bending the liquid hose according to the drawing in the installation instructions. Fix the liquid hose to the wall with a pipe clamp near the water trap. Connect the liquid hose to a tank or container of the desired size.

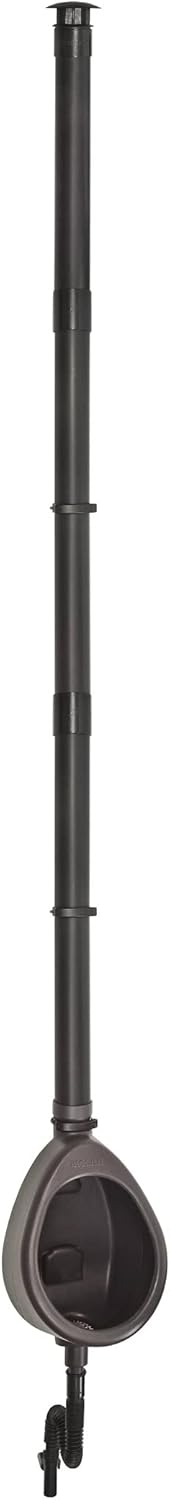

Fix the pipe clamps to the wall. Connect the ventilation pipe to the Urinal and pull the pipe through the roof so that it goes higher than the roof ridge. Fix the pipes to each other with joint sleeves. Place the roof cap on the end of the ventilation pipe.
